| Category | Item | Description | |

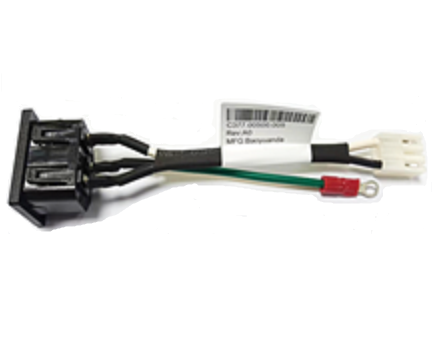

| Basic information | Product name | Power Socket Harness | |
| Electrical Performance | Rated current | 7A | |
| Rated voltage | 250V | ||
| Specification | Pulg 1 | Type | 60320 C14 |
| Latch Hook Size | 1.0mm | ||
| Plug 2 | Pin Pitch | 3.96mm | |
| Pin number | 3P | ||
| Plug 3 | Type | R-Type Terminal | |
| 孔径 | 3.7mm | ||
| Wire 1 | Length | 95mm | |
| Color | Black/ white | ||
| Wire 2 | Length | 80mm | |
| Color | Yellow/green | ||
| Safety standard | UL 1015 | ||
| Wire gauge | 18AWG | ||
| Conductor material | Stranded Tinned Copper | ||
| Insulation | PVC | ||
|
Application Scenarios |
1. Household Scenario: Powering various household appliances 2. Office Scenario: Supplying power to office equipment such as computers, printers, copiers, and projectors 3. Commercial Scenario: Providing electricity for commercial equipment in retail stores and shopping malls 4. Industrial/Engineering Scenario: Powering production equipment (e.g., machine tools, assembly line motors, inspection instruments) in factory workshops 5. Public Service Scenario: Wall or desktop sockets in public places such as subway stations, airports, libraries, and cafes, as well as power supply for medical equipment | ||
